XH-A01
Stainless steel butt hinge, square corner, 2 ball bearings
Photo shows a representative finish. Available in the finishes listed.

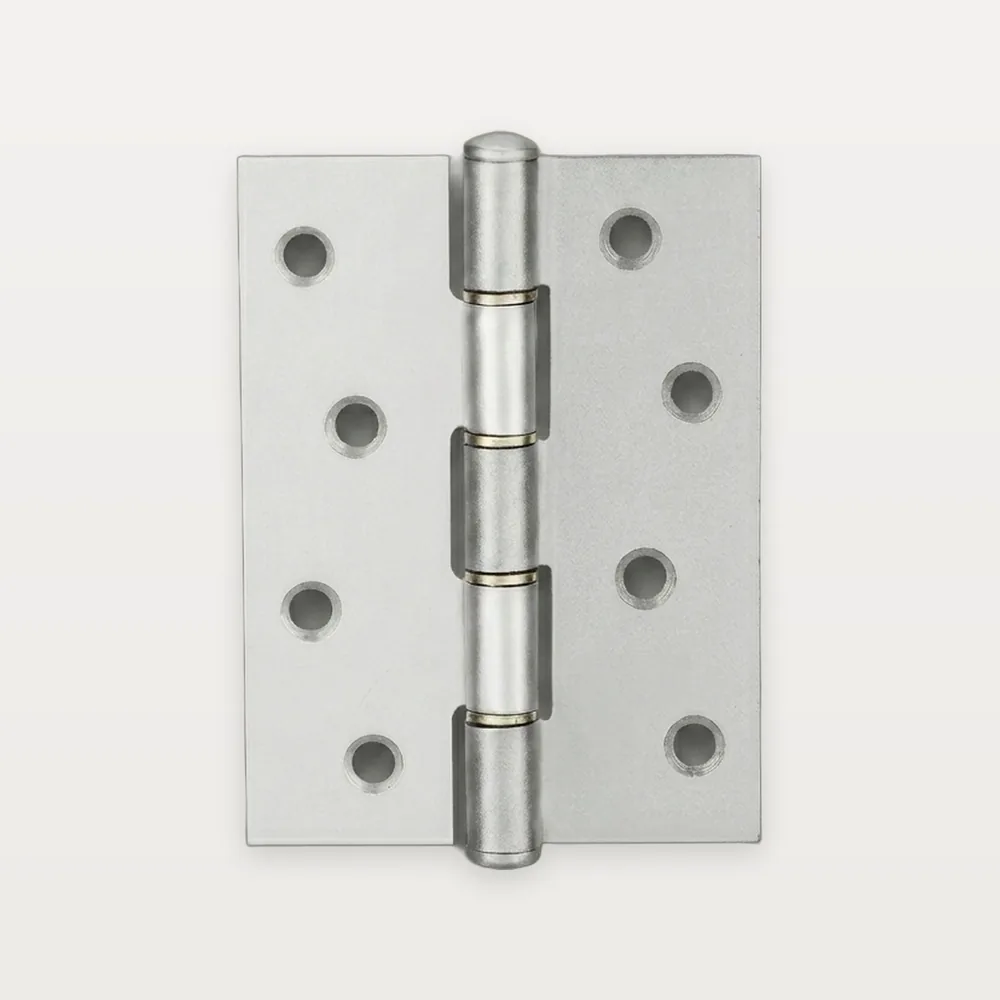

XH-A04
Stainless steel butt hinge, 4 double washers
Stainless steel4" × 3"2.0–4.0 mm4 double washers
Specifications
| Model | XH-A04 |
|---|---|
| Category | Butt hinges |
| Material | Stainless steel The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote. |
| Sizes (H × W × leaf) |
|
| Leaf thickness | 2.0–4.0 mm (.079–.157") |
| Knuckle diameter | 11–15 mm |
| Bearings / washers | 4 double washers |
| Tips | Flat tip |
| Finishes | PN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper |
| Custom colors | Available on request |
Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
