XH-C16
Small brass cabinet/box butt hinges
Photo shows a representative finish. Available in the finishes listed.

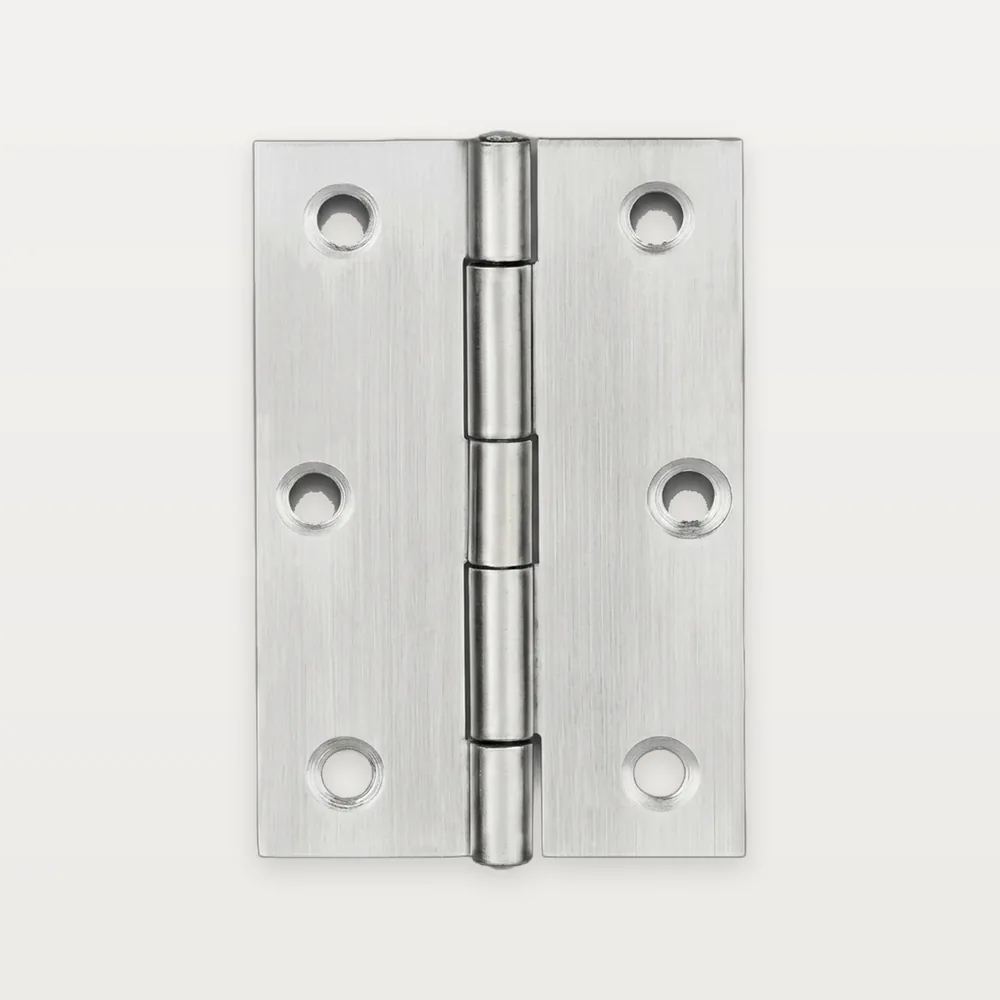

XH-A39
Stainless steel light butt hinge (cabinet/small door), plain
Stainless steel88 × 56 mm1.5 mmPlain (non-bearing)
Specifications
| Model | XH-A39 |
|---|---|
| Category | Small & cabinet hinges |
| Material | Stainless steel The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote. |
| Sizes (H × W × leaf) |
|
| Leaf thickness | 1.5 mm (.059") |
| Knuckle diameter | 8 mm |
| Bearings / washers | Plain (non-bearing) |
| Finishes | PN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper |
| Custom colors | Available on request |
Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
