XH-A41
Stainless steel US-style butt hinge, 2 or 4 ball bearings
Photo shows a representative finish. Available in the finishes listed.

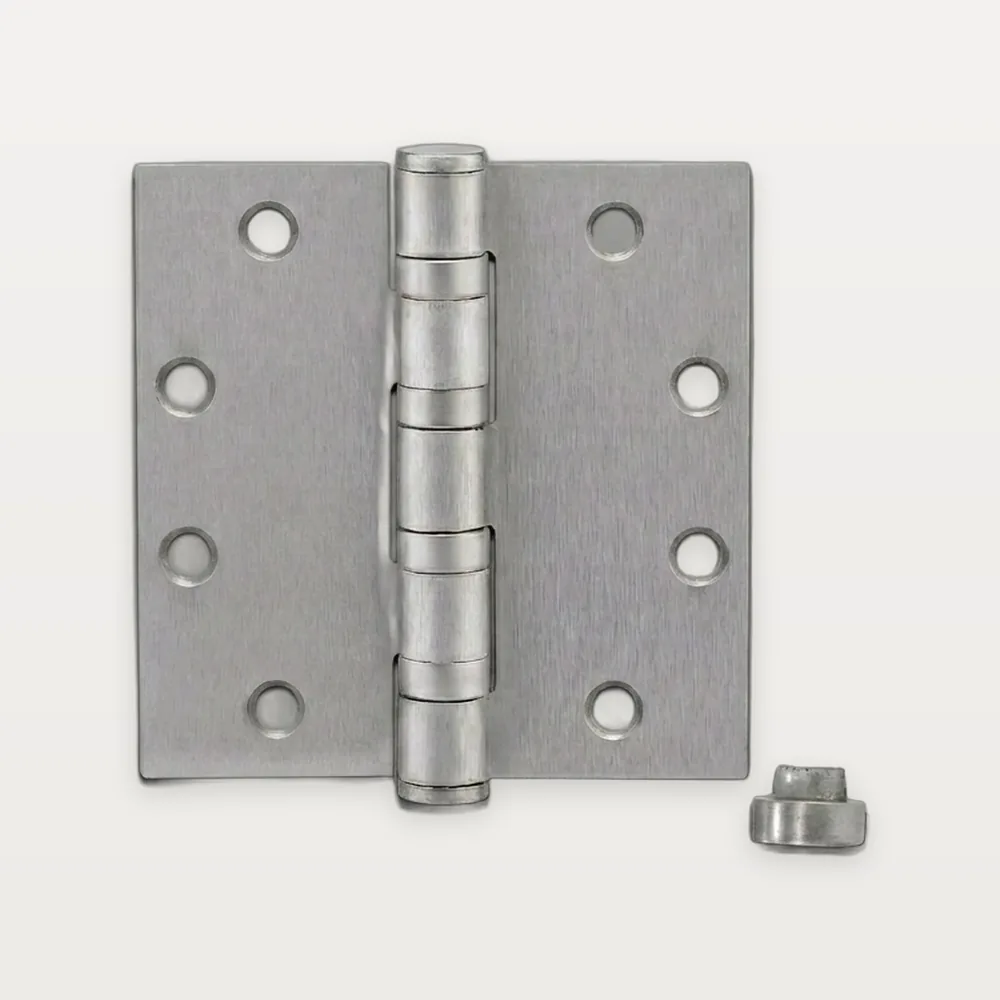

XH-A40
Stainless steel US-style butt hinge, 4 ball bearings, button tips
Stainless steel5" × 4"3.0–3.4 mm4 ball bearings
Specifications
| Model | XH-A40 |
|---|---|
| Category | Butt hinges |
| Material | Stainless steel The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote. |
| Sizes (H × W × leaf) |
|
| Leaf thickness | 3.0–3.4 mm (.118–.134") |
| Knuckle diameter | 18 mm (5" size) |
| Bearings / washers | 4 ball bearings |
| Tips | Button tip (LP) |
| Finishes | PN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper |
| Custom colors | Available on request |
Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
